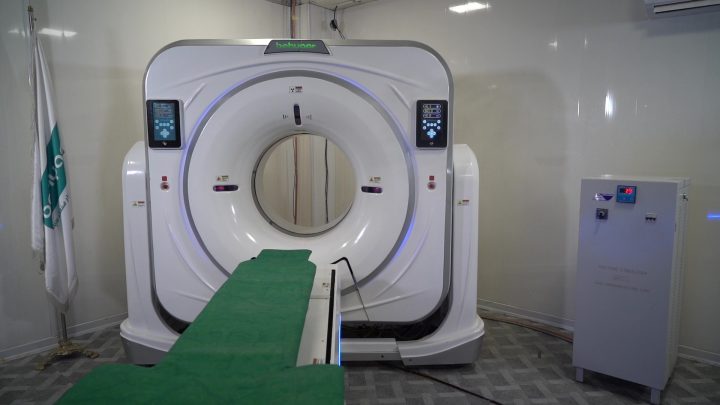

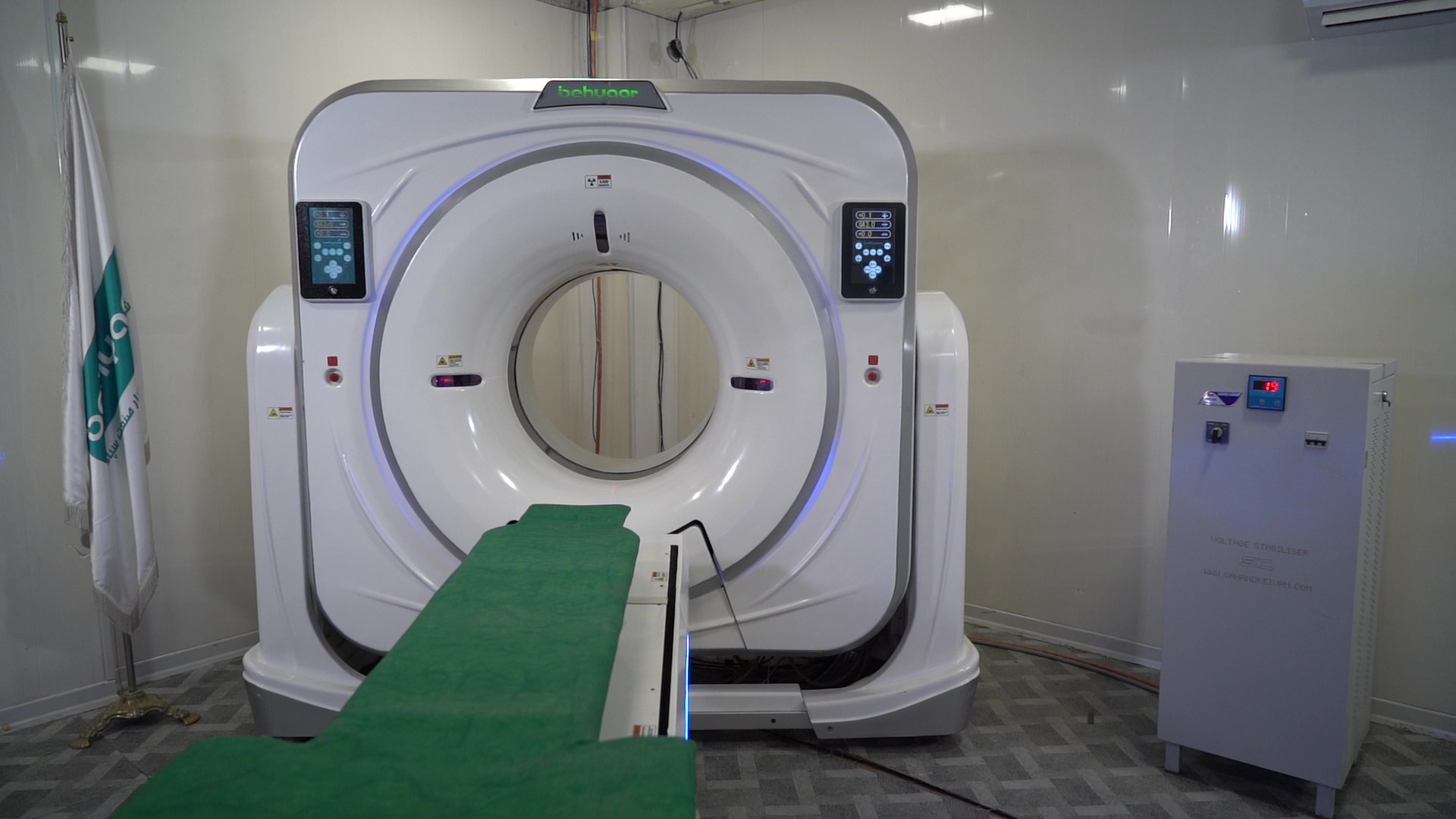

Behyaar 16 slice CT scan
The Behyaar 16 CT is a high-performance imaging system designed for routine and advanced CT applications, including motion-sensitive studies like pulmonary imaging. It offers fast scanning, reliable image quality, and dose efficiency while optimizing workflow with automated tools.
Key Features:
- Fast & Reliable Scanning: High-speed image reconstruction with up to 10 images/sec.
- User-Friendly Interface: Simplifies patient setup and scan management.
- Efficient Detector Design: 16-slice solid-state GOS ceramic detector for high precision.
- Low-Dose Application: Optimized for reduced radiation exposure.
Technical Specifications:
- Gantry: 70 cm aperture, 50 cm FOV, 0.5s scan speed.
- Data Acquisition: 16 slices/rotation, 4194 projections/rotation.
- X-Ray Tube: 80-140 kV, 10mA–450mA, 3.5 MHU heat storage.
- Couch: Supports up to 205 kg, 1750 mm horizontal movement.
- Computer System: 32GB RAM, 24” monitor, high-contrast imaging.
- Image Reconstruction: 512×512 & 1024×1024 matrix, 0.625-10 mm slice thickness.
This system enhances diagnostic accuracy, speeds up imaging processes, and ensures consistent, high-quality results with advanced imaging capabilities.
