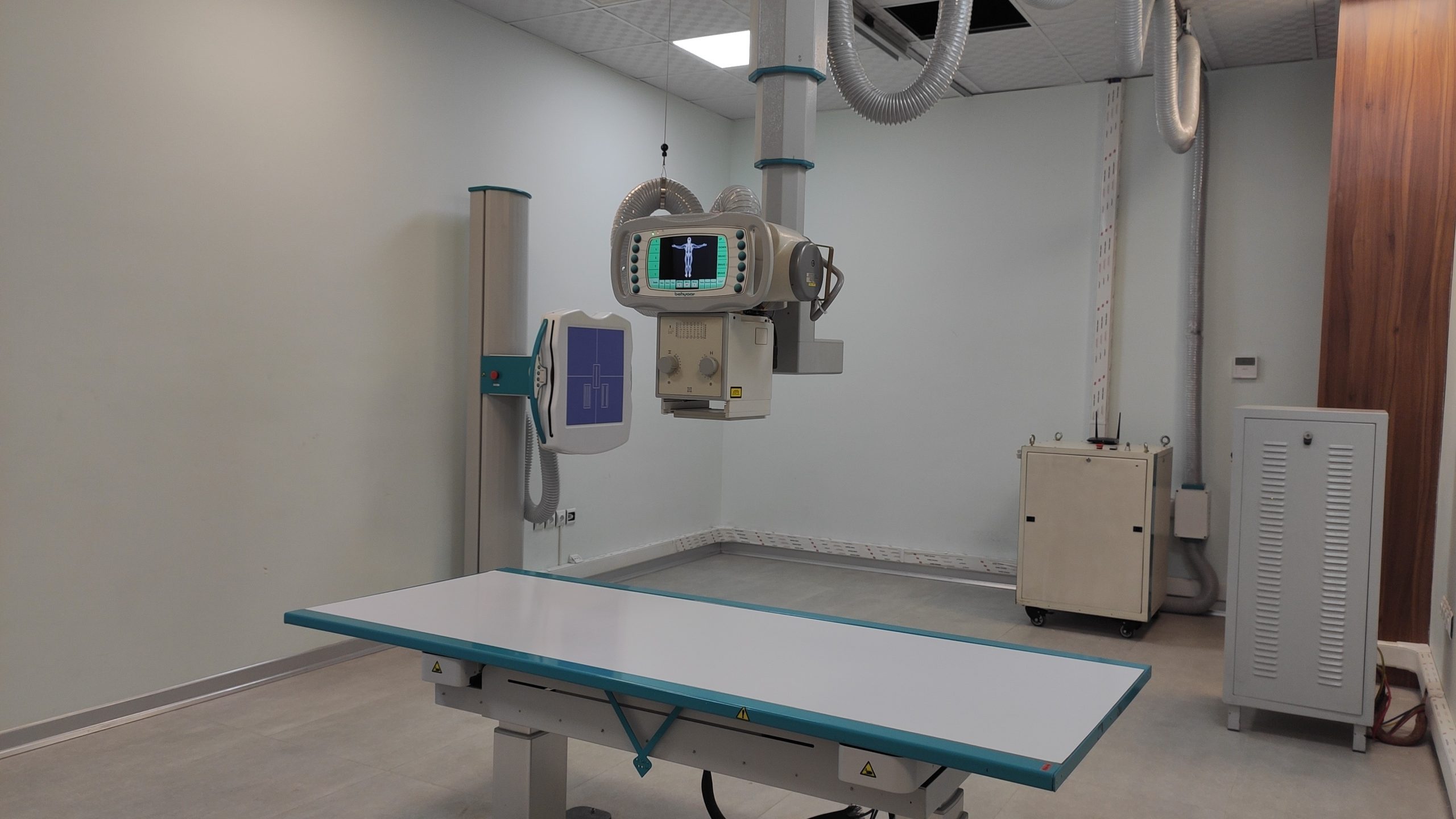

Behyaar Digital Ceiling X-RAY System

The Behyaar Digital Ceiling X-Ray System offers fully motorized movement with auto-tracking and positioning, ensuring precise and efficient imaging.

Key Features:

• Ceiling Suspension: 3m longitudinal, 2.5m transverse, 180cm vertical travel.
• Tube Rotation: ±180° (vertical), ±135° (horizontal) for flexible positioning.
• Motorized & Manual Movement: Auto-tracking on wall and table for optimized workflow.
• Table: 2400mm x 900mm, motorized elevation (545–1000mm), 200kg max weight.
• Wall Stand: 400–1800mm height adjustment, -20° to +90° detector tilt.
• AEC: Three-field ionization chamber for automatic exposure control.

A versatile, high-precision X-ray system designed for optimal imaging efficiency in medical settings.
