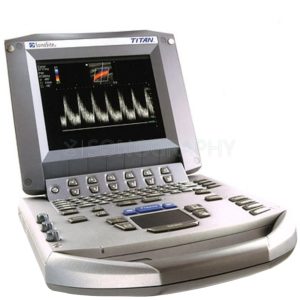

Sonosite Titan Portable Ultrasound

Imaging Modes

• 2D.
• Split screen.
• Zoom.
• Color power Doppler.
• M-Mode: 3 sweep speeds 1/2:1/2, 1/3:2/3 or full screen options.
• Pulsed wave (PW) Doppler.
• Continuous wave (CW) Doppler.
• Velocity based color flow Doppler.
• Duplex imaging 3 sweep speeds 1/2:1/2, 1/3:2/3 or full screen options.
• Tissue Harmonic Imaging. (THI)

Measurement Tools

• 2D Distance calipers – two sets Ellipse for area and circumference measurements.
• M-Mode Distance and time caliper set Heart rate.
• Doppler Velocity caliper – two sets.

Power

• Operates via battery or AC power – from 1.5 up to 4 hours on fully charged battery, new battery life depends on the active functions used and keystrokes.
• Battery: Rechargeable lithium ion.
• AC: Via universal power adapter, 100-240 VAC, 50-60 Hz.

Display Annotation

• Text and pictograms – User-selectable, application-specific text via function keys.
