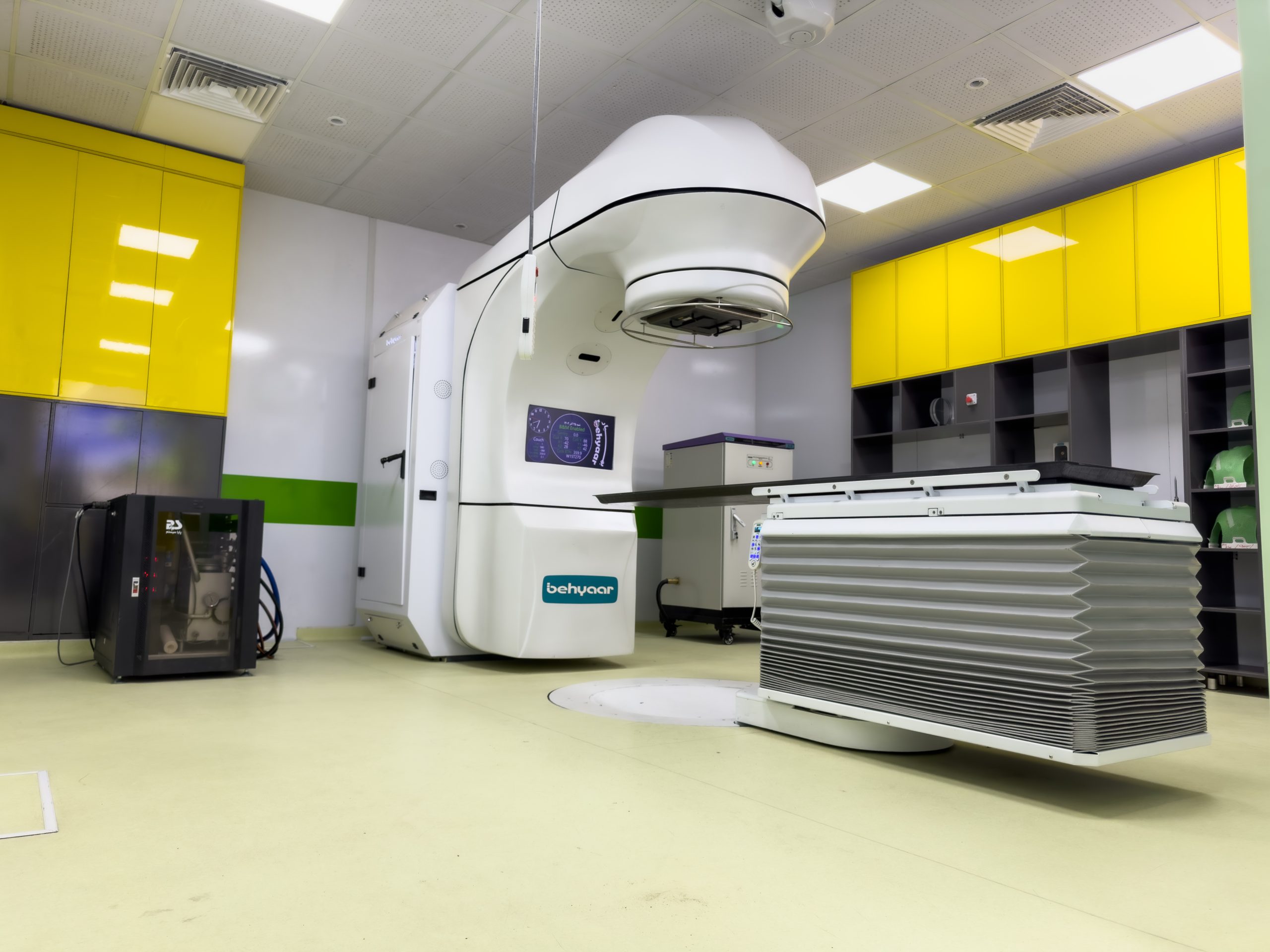

OMID 6MV Linear Accelerator Radiotherapy

OMID 6MV Linear Accelerator Radiotherapy

Request a Purchase Price.?

    OMID 6MV Linear Accelerator Radiotherapy



    Key Benefits:

    • Advanced Treatment: Supports VMAT, SRS, and SBRT for targeted therapy with minimal damage to healthy tissue.
    • Superior Imaging: EPID & CBCT ensure real-time alignment and high-resolution 3D imaging.
    • Patient Comfort & Accessibility: Spacious design, flexible positioning, and non-coplanar beam techniques.
    • Quick & Accurate Setup: Precise treatment table with low height and real-time adjustments.
    • AI-Enhanced Precision: AI-driven treatment planning, error reduction, and workflow efficiency.

    The OMID 6MV LINAC combines cutting-edge technology and AI for optimized cancer treatment.

    OMID LINAC Models

    OMID Single Energy

    • Photon Beam: 6MV, Magnetron-based RF power
    • Dose Rate: 200 MU/min (300 MU/min optional)
    • Precision: ≤2% symmetry, ≤3% flatness (40×40 cm field)
    • MLC: 142 leaves
    • Imaging (Optional): Amorphous Silicon Detector (1024×1024, 41×41 cm)
    • Treatment Modes: 3D Conformal, IMRT, IGRT, VMAT, SRS, SBRT

    OMID multi-energy

    • Photon Beams: 6MV, 10MV, 15MV (Klystron/Magnetron)
    • Dose Rate: 300 (Low), 1200 (High) cGy/min
    • Flatness: ≤3% (10×10 to 20×20 cm), ≤2.5% (20×20 to 40×40 cm)
    • Symmetry: 1%
    • MLC: 142 leaves
    • Field Size: 40×40 cm
    • Imaging & Treatment Modes: Same as Single Energy model

    Electron Beam Configurations (Multi-Energy Model Only)

    • Energies: 6, 8, 10, 12, 15 MeV
    • Max Dose Rate: 2000 MU/min
    • Precision: ≤4.5% radial/transverse flatness, ≤5% diagonal flatness, 2% symmetry
    • X-ray Contamination: ≤2%
